DDA Handrails – Stargard

The original “warm to the touch” handrail system

Stargard is a warm to the touch PVC handrail that is DDA compliant. It consists of a tubular system fabricated from galvanized steel which is fully sleeved with 4mm thick pvc after fabrication and utilizing stainless steel fittings.

A DDA Handrail is ideal for applications with access ramps to buildings or for balustrades in schools, offices and public buildings. Stargard handrails will meet site specific requirements. This means that you know your getting a product that is top quality, and suitable for use. By Choosing a DDA handrail you can have absolute confidence in your product.

A high quality PVC coating ensures the handrail is “warm to the touch”. Tests carried out on site have shown that Stargard is normally 4-5 degrees C warmer than thermal painting or powder coating. This is very important at low ambient temperatures.

The 4 mm thick PVC sleeving is UV stable and has a consistent colour throughout the thickness of the PVC. A wide range of colours are available to suit the application.

To find out more about how this product could work for your next project please use our enquiry form below.

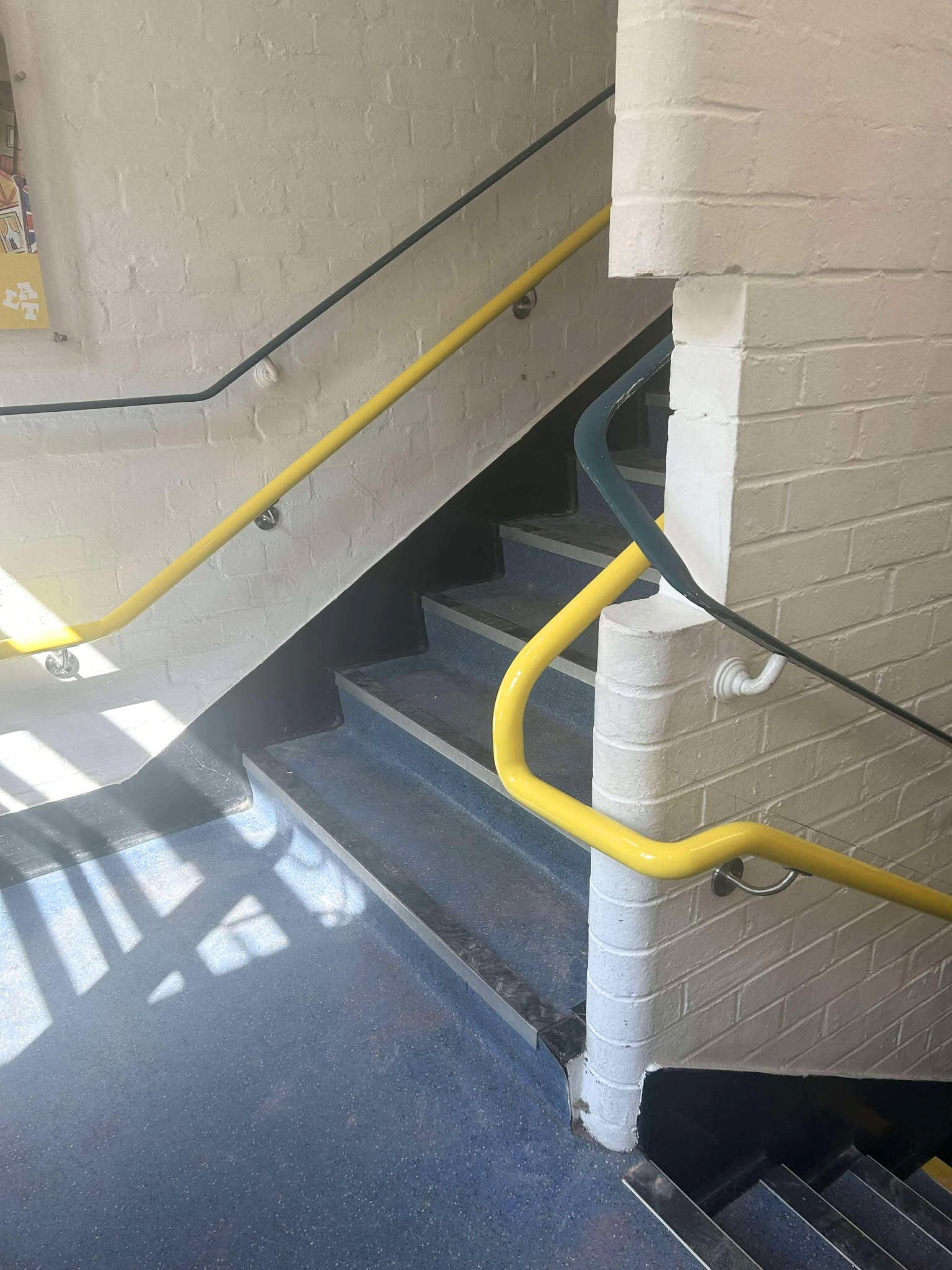

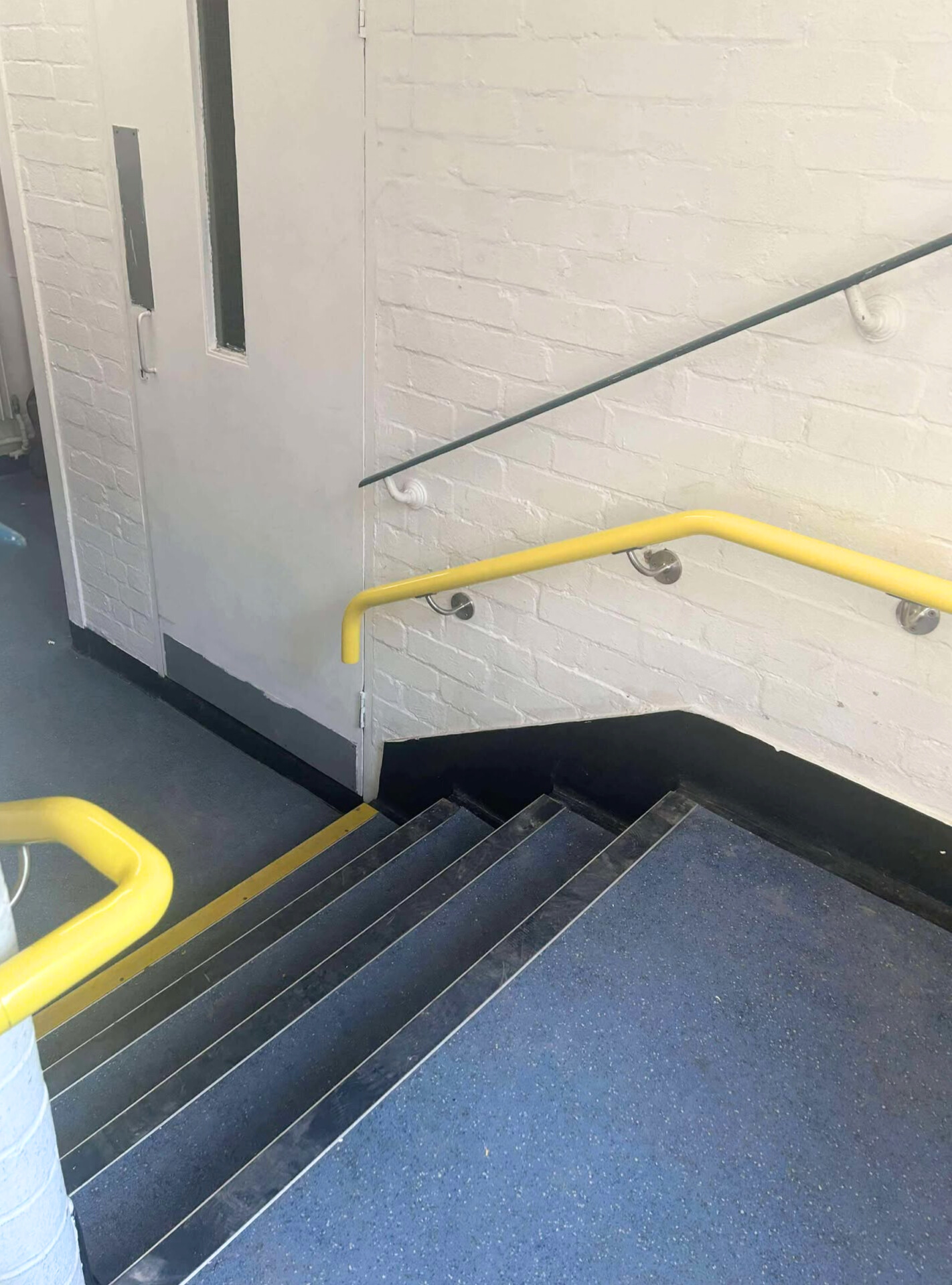

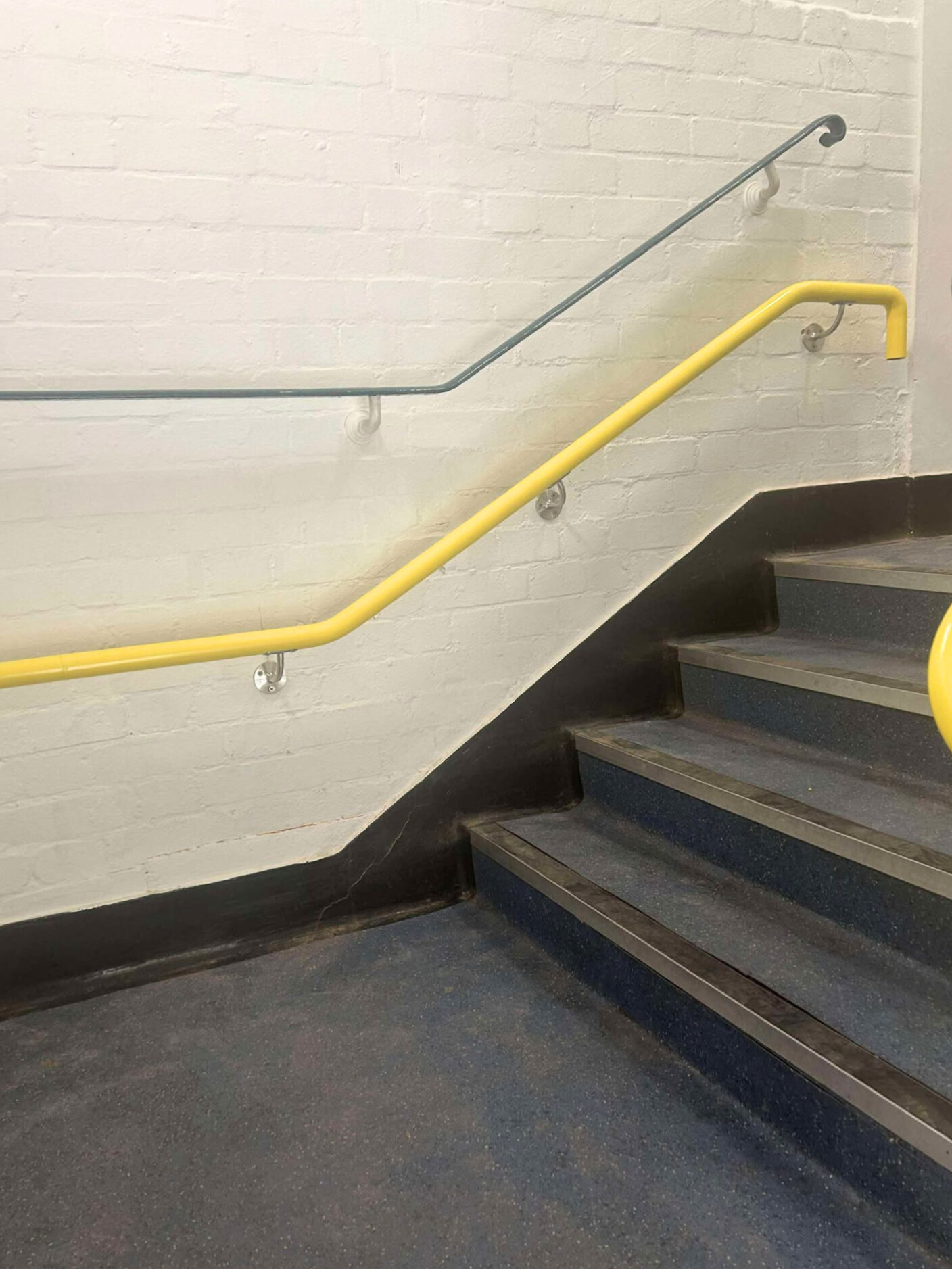

Internal black wall mounted handrail
External handrail on ramp
external handrail
stargard handrail outside nursery
Double handrail
previous arrow
next arrow
ArrowArrow
Slider

DDA HANDRAIL SPECIFICATIONS:

  • Handrail: – is either 42mm or 50mm finished diameter in lengths of up to 4 metres keeping the number of visible joints to a minimum. LED Insert lighting can be fitted into Stargard handrail.
    Click here for more information.
  • Balusters (posts): – are 50mm finished diameter either PVC sleeved or stainless steel.
  • Infill panels: – a choice of glass, perforated metal sheet, stainless steel or powder coated mid / running rails, stainless steel wire or to a bespoke design.
  • Fittings: – base plates, handrail brackets, glass brackets are all stainless steel.
  • PVC sleeving: – is 4mm (4,000 microns) thick which resists knocks, will not chip and is available in a standard range of colours, red, yellow, blue, green, grey, black, white, and silver. Other colours are available for orders over 250 metres.
  • Maintenance: – the absolute minimum of maintenance is required for Stargard.



What makes a handrail DDA compliant?

We refer to Stargard as a DDA Handrail, but what does this mean? When we refer to DDA compliance we are talking about handrails which conform to the railing requirements of the Disability Discrimination Act (DDA), the Building Regulations Part M and British Standard BS 8300. This type of handrail must meet the following requirements:

  • Handrail Height- Handrails must be between 900mm and 1.1m in height and should extend the width of one stair tread and then level out for at least 300mm. Consideration should also be given to children or those who are short of stature through the provision of a second, lower handrail set at 600mm.
  • Visual – Handrail should contrast visually with its surroundings without being highly reflective
  • Shape and size – Should be circular or oval for ease of grip.  Ideally circular handrails should have a diameter of between 40 and 45mm while oval ones should have a width of 50mm



Applications:

Stargard is suitable for any application where warm to touch or DDA compliance is important. Under the Equality Act 2010, reasonable adjustments need to be made to commercial and public buildings to overcome physical barriers which prevent disabled access. One way to achieve this is to provide suitable handrails on external stairways as recommended in Part M of the Building Regulations. This means that the Stargard system is ideal for any commercial or public building. Previous applications include schools, railway stations, hospitals and public buildings.
